| Brand Name: | TICO |
| Model Number: | STC-KZK-904 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 10~15 working days |
| Payment Terms: | T/T |

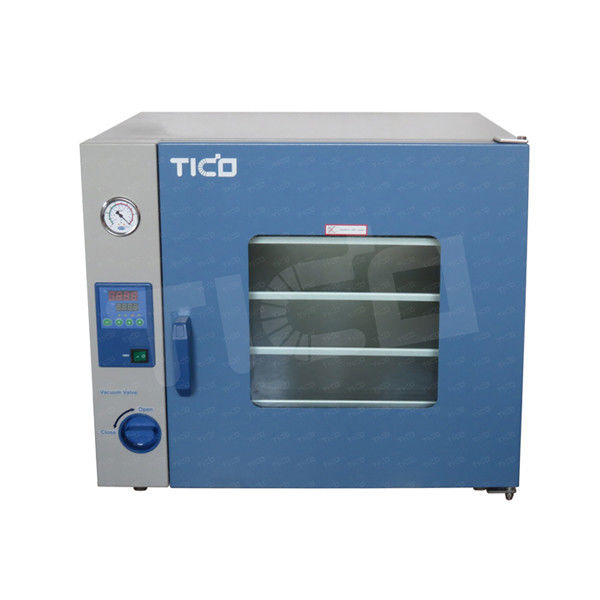

90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D
Brief Introduction
STC-KZK-904 is a compact vacuum drying oven widely used in laboratory. It is applicable for the drying, sterilization and heat treatment for the material under vacuum conditions. Heating time is adjustable, which can maximally reach to 200℃. It is a 90L oven with 4-layer brackets.
Features
● Equipped with inert gas valve to fill gas into the chamber.
● The working chamber is rectangular to achieve the maximum of effective volume.
● Douuble toughened explosion-proof glass esures security, and allows observing the inside material easily.
● 133Pa high vacuum degree.
● Heating temperature is settable.
Technical Parameters
| Model | STC-KZK-904 |
| Working voltage | AC110V/220V opyional |
| Input voltage | 1400W |
| Heating temperature |
RT+ 10 °C~ 200°C settable. 250°C can be customized |
| Constant temperature fluctuation | ± 1°C |
| Temperature resolution | 0.1°C |
| Vacuum degree | 133Pa |
| Vacuum pump | External connecting |
| Dimension | L740 * W610 * H591mm |
| Volume | 90L |
| Weight | 138kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
