| Brand Name: | TICO |
| Model Number: | STC-CGC-H18 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 20~25 working days |
| Payment Terms: | T/T |

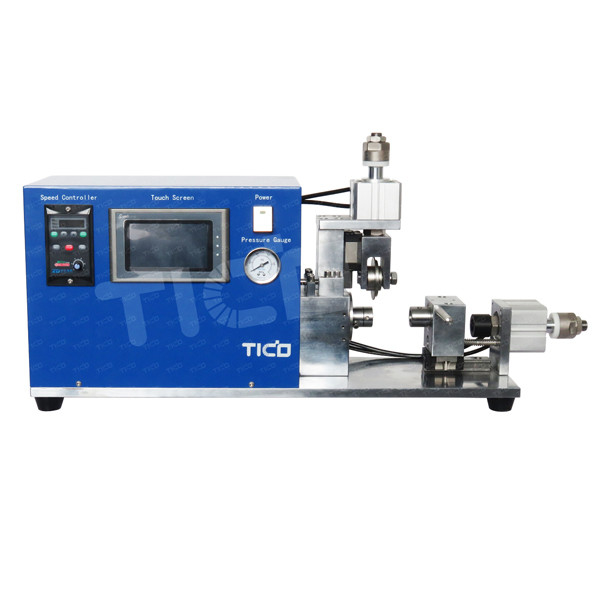

18650, 26650, 21700 Cylindrical Cell Case Grooving Machine
Brief Introduction
STC-CGC-H18 is TICO TECHNOLOGY's new generation of cylindrical cell grooving machine, it is with touch screen, high automation. With various of grooving die, it can be used for grooving different cylindrical cells, like 18650, 26650, 21700, and other cylindrical cells. It is more compact size and easy operation than last generation of grooving machine, it is a perfect device for cylindrical research for battery lab or factory trial production.
Features
● Touch screen operation, high automation.
● Different size of grooving die is optional, like 18650 ,26650, 21700, etc.
● Scale is provided on grooving machine to facilitate to adjust the grooving depth.
● More simple operation.
● Compact size, light weight, more economical for shipping.
Technical Parameters
|
Model |
STC-CGC-H18 |
|
Working voltage |
AC110/220V optional |
|
Grooving die |
18650 grooving die for standard .Othere size grooving die is optional |
|
Grooving depth |
1.2~2.0mm adjustable |
|
Grooving width |
1.1~1.5mm |
|
Power |
150W |
|
Grooving die lifetime |
> 100 000 times |
|
Air source |
0.5MPa ~ 0.7MPa |
|
Dimension |
L700 * W300 * H320mm |
|
Weight |
47kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
