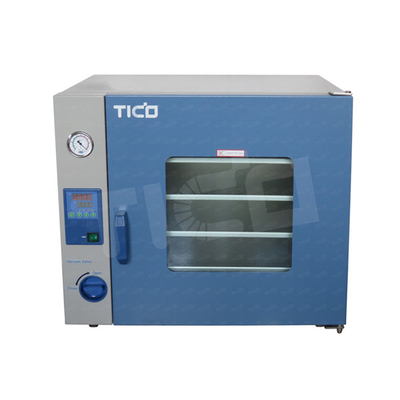

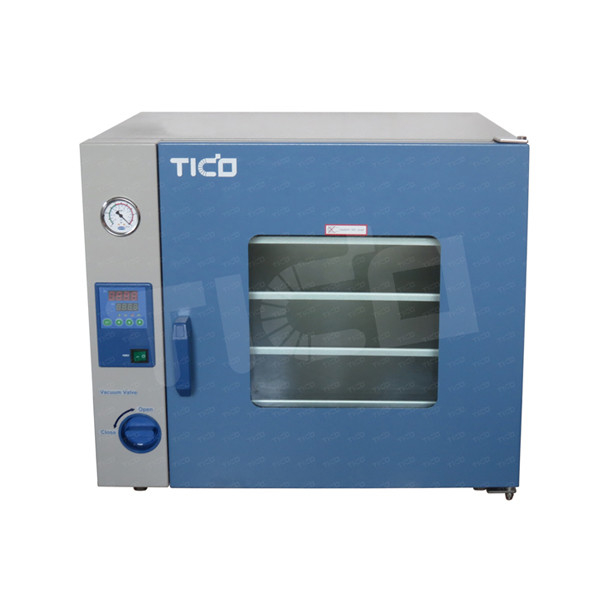

Cylindrical Cell Research Vacuum Drying Oven 50L Volume
Brief Introduction
STC-KZK-502 is a compact vacuum drying oven, widely used in laboratory. It is applicable for the drying, sterilization and heat treatment for the articles under vacuum conditions. Heating time and temperature can be set.
Features
● PID temperature controller with over temperature alarm function, accurate and reliable.
● Stainless steel chamber, durable and easy to clean. Rectangular shape maxmizes the effective volume.
● Dual-layer tempered glass door allows to observe the inside material easily.
● Closing tightness of the chamber door can be adjusted, synthetic silicon door sealing ring ensures the high vacuum degree in the chamber.
● Storage, heating, testing and drying may be carried out in an environment free of oxygen or filled with inert gas without causing oxidation.
Technical Parameters
| Model | STC-KZK-502 |
| Working voltage | AC220V, 50Hz |
| Input voltage | 1450W |
| Temperature |
RT+10 ~ 200°C is standard RT+10 ~ 250°C is optional |
| Temperature resolution / volatility | 0.1°C /±1°C |
| Vacuum degree | 133Pa |
| Vacuum meter | Mechanical pointer type |
| Working condition temperature | +5~40°C |
| Chamber size | L415 x W370 x H345mm |
| Dimension | L730 x W450 x H550mm |
| Volume | 50L (other volume optional) |
| Shelves | 2 Pcs (shelf quantity optional) |
| Vacuum Pump | Optional |
Warranty
1 year's warranty with lifetime support.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes, Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
|
|
