| Brand Name: | TICO |
| Model Number: | STC-DRG-100 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 20~25 working days |
| Payment Terms: | T/T |

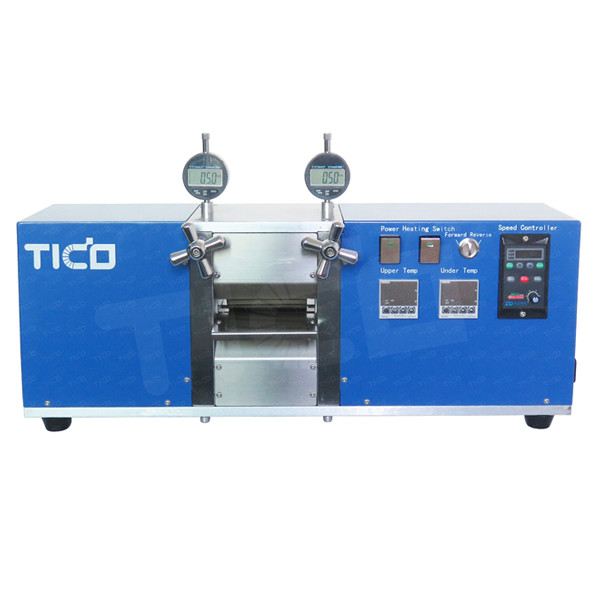

Hot Rolling Press Machine for Pouch Cell Electrode Pressing
Brief Introduction
STC-DRG-100 is a compact electric hot roll press machine, mainly used for battery electrode pressing, max temperature to 120℃ adjustable and digital display by thermostat. The pressing gap and pressing speed is adjustable. 100mm width roller as standard model, the other width roller can be optional upon request.
Features
● High roller hardness HRC62, surface plated by chrome treatment.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Heating temperature max up to 120℃,digital display by thermostat.
● Safety protection cover is designed to prevent hand injured from high temperature.
● Slotting design for the metal frame is good for heat radiation.
● Pressing thickness can be adjusted.
● Rolling speed can be adjusted by speed controller.
● Electric rolling makes uniform pressing force.
● Forward & backward are available.
Technical Parameters
|
Model |
STC-DRG-100 |
|
Working voltage |
AC110/220V optional up request |
|
Roller |
Dia 100 x W100mm (other width can be optional ) |
|
Roller hardness |
>HRC62 |
|
Pressing thickness |
0~2mm adjustable |
|
Feeding speed |
Max 10mm/s adjustable |
|
Heating temperature |
Room temperature to 120℃ adjustable, digital display |
|
Power |
720W |
|
Dimension |
L390 * W250 * H356mm |
|
Weight |
60kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
