| Brand Name: | TICO |
| Model Number: | STC-BDP-MA200 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 8~15 working days |
| Payment Terms: | T/T |

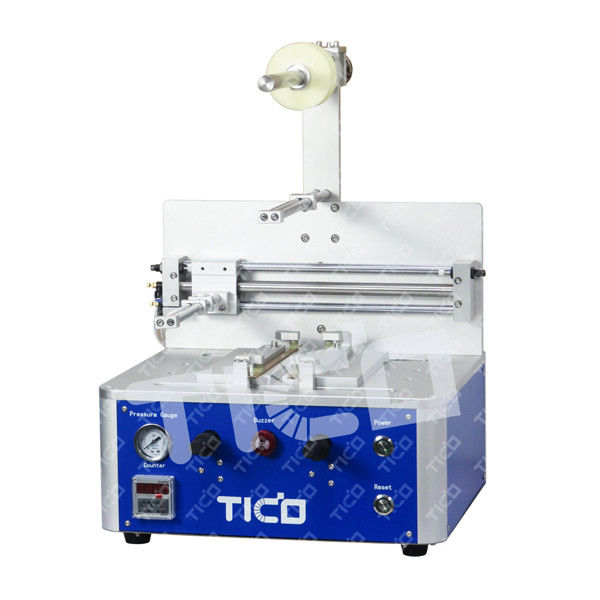

TICO New Design Semi-auto Electrode Stacking Machine for Pouch Cell R&D
Product Introsuction
STC-BDP-MA200 is a new designed semi-auto electrode stacking machine, which is used for stacking pouch cell anode&cathode and separator by "Z'' shape to make pouch cell core. Compared with the previous generation of product, this one integrates the control box and operation box together, smaller size, and saving space. The stacking size is adjustable from L20~200mm to W20~200mm.
Features
• Compared with previous generation product, this machine integrates the control box and operation box together, easy to operate.
• Smaller size than last generation, saving space.
• Stacking size is adjustable.
• Counter is designed.
Technical Parameter
|
Brand name |
TICO |
| Model | STC-BDP-MA200 |
| Working voltage | AC110V/220V optional |
| Stacking size | L (20~200) mm x W (20~200) mm |
| Separator roll diameter | Max φ250mm |
| Traveling stroke | 300mm |
| Air source | 0.5~0.7 Mpa |
| Operation mode | Semi-auto |
| Dimension | L425 * W485 * H600mm |
| Weigh | 34kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R& D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
