| Brand Name: | TICO |
| Model Number: | TC-TMJ-T550R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 7~8 working days |
| Payment Terms: | T/T |

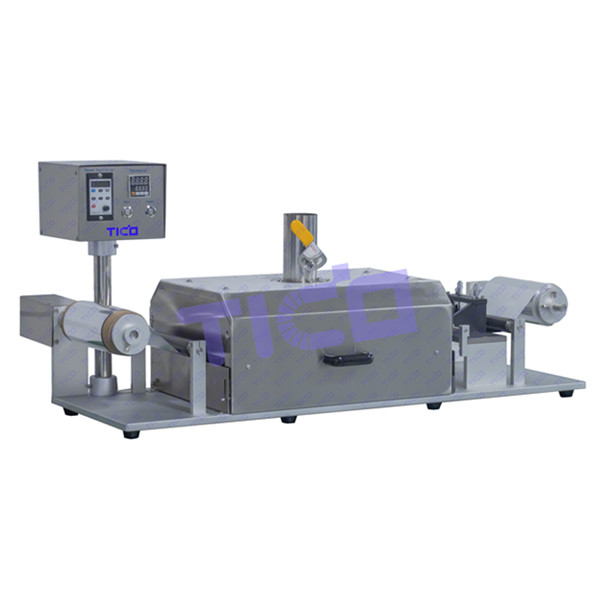

Roll to Roll Electrode Coating Machine for Lab Battery R&D
Brief Introduction
This product can be used for continuous coating and proofing or small-scale production experiments. This machine is specially used for the continuous coating process of lithium ion battery cathode and anode electrode. It is suitable for small-scale experiments in colleges and enterprises, also can be used for the ceramic films, crystal films, special nano-films coating, etc. The machine body is made of stainless steel, which is exquisite, durable and easy to operate.
Features
● This machine has a winding and unwinding device.
● The whole machine is assembled with high-precision modular coating station structure.
● Equipped with the heating cover and digital thermostat, it adopts independent high-precision PID temperature control mode.
● The heating tube is infrared heating to effectively ensure the uniformity of drying material.
● Coating thickness is controlled by precisely adjusting the coating gap of the upper blade.
● Coating width is adjusted by two baffles in the groove. (Coating width is customizable).
Technical Parameters
|
Model |
STC-TMJ-T550R |
|
Voltage |
AC 220V±10%, 50 Hz |
|
Power |
2KW |
|
Coating width |
Standard width is 100mm, 50 ~ 220mm is customizable |
|
Coating thickness |
0 ~ 3mm is adjustable |
|
Oven length |
550mm |
|
Coating speed |
500mm/min |
|
Heating temperature |
Max. 150℃ |
| Dimension | L1200 * W600 * H580mm |
| Weight | 700Kg |
Warranty
1 year's warranty with lifetime technical support.
FAQ
1. Are you a manufacture ?
A: Yes,our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A: Yes. Most of our products can be customized to meet different requirments.
3. Will you provide test video before dispatch ?
A: Yes, we take test video for every equipment before dispatchm which will display how to use it.
4. Can you offer overseas installation service ?
A: Yes, we can dispatch professional engineer for on-site installion service.
|
|
