| Brand Name: | TICO |
| Model Number: | STC-CJR-SM18 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 15~20 working days |
| Payment Terms: | T/T |

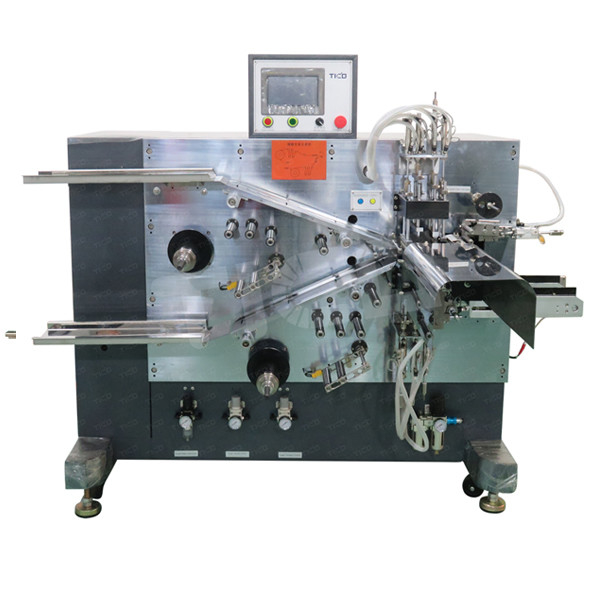

Semi-auto Winding Machine for Supercapacitor
Product Introsuction
It is used for cylindrical cell electrode winding. Manually load the electrode to the winding part, winding with separator, the tape sticking and unloading will be finished automatically
Features
• Single needle structure is adppted.
• Manually loading, automatic winding, automatic tape sticking and automatic unloading.
• The adhesive tape is pasted horizontally (the end tape is perpendicular to the polar ear), the adhesive tape is flat, and the position of adhesive tape can be accurately controlled without changing the position.
• The winding speed is adjustable.
• The tension can be adjusted.
Technical Parameter
| Model | STC-CJR-SM18 |
| Voltage | AC220V/50Hz |
| Applicable product | φ32~62mm |
| Winding pin size | φ3 ~ φ12mm optional according to requirement |
| Winding accuracy | ≤0.5mm |
| Power | 1.5KW |
| Compressed air | 0.4~0.7Mpa |
| Dimension | L1750 * W1350 * H1570mm |
| Weight | 500kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
