| Brand Name: | TICO |
| Model Number: | STC-DDG-150 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T |

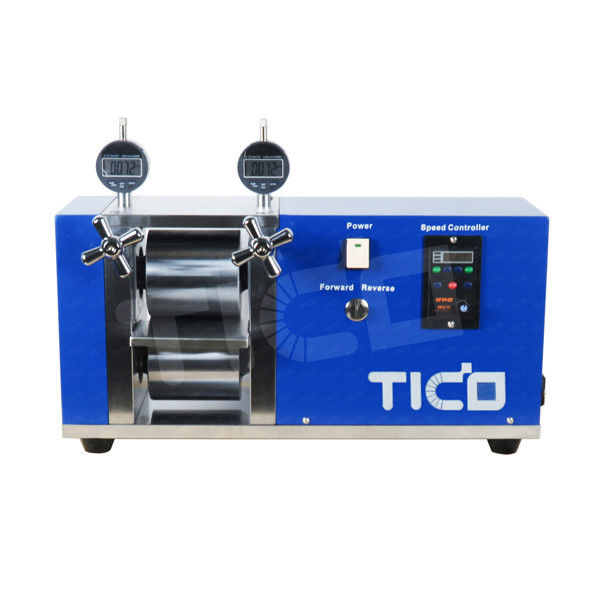

150mm Lab Electric Rolling Press Machine for Battery Electrode
Brief Introduction
STC-DDG-150 used for battery electrode rolling press for battery research after coating and drying. It is with digital dial indicator, easy to operate. The pressing speed is digital display.
Features
● Pressing thickness is adjustable and digital display.
● Rolling pressing speed is digital display.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Forward & backward are available.
● Electric pressing makes uniform pressing force.
Technical Parameter
| Model | STC-DDG-150 |
| Working voltage | AC110V/220V optional |
| Roller size | φ100xW150mm |
| Roller hardness | >HRC62 |
| Pressing thickness | 0~2mm adjustable |
| Digital Micrometer | resolution 0.01 and 0.001mm optional |
| Pressing speed | 0~10mm/s adjustable, digital display |
| Power | 120W |
| Dimension | L565 * W200 * H330mm |
| Weight | 65kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
