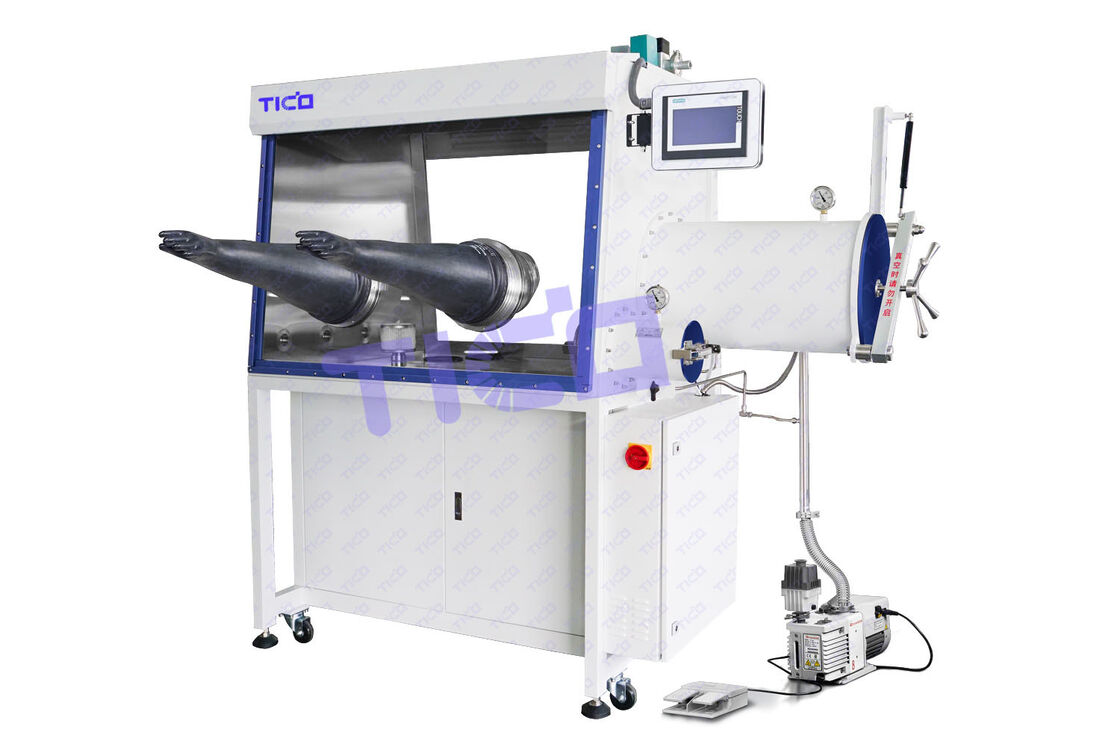

One Box Two Working Stations Glovebox

Name: One Box Two Working Stations Glovebox
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-VGB-12D
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-VGB-12D
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	15~20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Glove Box

H2O And O2:

Less Than 1 Ppm

Structure:

Two Work Station

Display System:

PLC

Industry Applied:

Lithium Battery, Physical Chemistry, Organometallic, Solar Cell, Etc

Model:

STC-VGB-12D

Packaging Details:

Wood Packing

Supply Ability:

20 sets per month

Product Description

One Box Two Working Stations Glovebox (One box, two working stations, double side operation.)

Brief Introduction

STC-VGB-12D is an internet of things vacuum glovebox, with the features of centralized equipment management intelligent analysis & early warning of equipment status, the abnormal alarm message is actively pushed, remote fault diagnosis and online debugging. H2O & O2<1ppm. The leakage rate of box is 0.05 vol%/h. It is widely used for Lithium Battery, Physical Chemistry, OLED&PLED, Organometallic, Solar Cell, Semi-Conductor, Catalyst, Material Handling, Fine Chemicals, Polymeric Materials, Powder Metallurgy, Special Welding, Special Lamps, Nuclear Technology, Pharmaceutical etc.

Key Features

● With Inert gas’s inclosed circulation by blower and purifier, H₂O and O₂can be removed continuously.

● Material for removing H2O and O2 can be regenerated. The process of regeneration is controlled by programs.

● The replacement of atmosphere in a glove box is achieved automatically by purging valves.

● The pressure in the glove box is automatically controlled by PLC and can be freely set, exceeding+/- 16mbar for automatic protection by the system.

● The vacuum pump is started automatically when necessary and turned off after a period of idle time (only for dual purifier).

● Networking and online centralized management of industrial equipment have become a trend in today's world. It is the internet of things product which can be applied to a variety of industrial equipment and achieves network monitoring, glovebox brings a convenient, reliable, intelligent experience to customers.

Technical Parameter

Glovebox House
House	Material: Stainless steel type 304, thickness 3mm
	Inside surface: Brushed finish
	Outside surface: Enameled, white
	Inside dimension: L1220 * W750 * H900mm
Window	Safety glass with thin film, thickness 8mm
Glove port	Aluminum alloy, O-ring sealed, 4 ports
Gloves	2 pairs; Butyl; thickness 0.4mm; Dia. 8 inches * L32 inches
Dust filter	0.3 micron; 1 gas inlet and 1 gas outlet filter included
Stainless shelves	3 layers mounted inside, height adjustable
Box light	LED lamp, front mounted above each window
Feedthrough	DN 40 KF: several pieces for customers’ usage Electric feedthrough: 1 electrical plug for inside(220V)

Big Antechamber
Chamber	Inside dimension: φ 360mm * L600mm, right side
	Material: Stainless steel type 304
	Surface: Brushed finish inside and painted white outside
Accessories	Door: Double door, anodized aluminum
	Thickness: 10mm
	Manometer: Analog display
Control	Manual operation

Mini Antechamber
Chamber	Inside dimension: φ150mm * L300mm, right side
	Material: Stainless steel type 304
	Surface: Brushed finish inside and painted white outside
Accessories	Door: Double door, anodized aluminum
	Thickness: 10mm
	Manometer: Analog display
Control	Manual operation

Gas Purification
Purifier	Function: Removal of H2O & O2
	Container material: Stainless steel type 304
	Absorber unit: Copper catalyst: 5kg; Molecular sieve: 5kg
	Capacity of purifying: Removal of 60L O2 & 2kg H2O
	H2O and O2: less than 1 ppm
Gas circulation	Working gas: Nitrogen. Argon and Helium
Gas circulation	Blower: 90m3/h
Regeneration	Operation: Auto; PLC controlled regeneration
Regeneration	Regeneration gas: working gas / H2 mixture (H2: 5~10%)
Pump	Type: 12m3/h Rotary vane pump, oil mist, angle valves, gas ballast control
Valves	Main valves: DN 40 KF electro-pneum, angle valves

Controlling System
Function	Includes self-diagnosis, electric failure and restart, pressure controlling and self-adapt, circulation controlling, code protection, union controlling adopts, SIEMENS PLC touch screen etc.
Pressure controlling	The pressure in the box is controlled by PLC, the pressure can be settled between+/-15mbar,while beyond +/-16mbar the system will automatically protect itself
Foot switch	Controlling the pressure, easy to raise or depress the pressure
Vacuum system	British EDWARDS vacuum pump, which can be controlled by PLC or by hand.
	The type is 12m3 /h. It can vacuumize the antechamber and keep the balance of the pressure.
	The limit vacuum is ≤ 2x10-1pa.

Analyzer
Moisture analyzer	Measuring range: 0~500ppm, display by PLC
Oxygen analyzer	Measuring range: 0~1000ppm, display by PLC
Solvent absorber	Absorber unit: activated carbon: 2Kg
Solvent absorber	Connected with main cycle pipeline, the cycled air can go through absorber at first and absorb organic solvent atmosphere

Internet of Things System

Function

● Login control system from WeChat Public Number

● Login control system by scanning QR code

● Real-time monitoring of device status

● Data backup and historical data query

● Alarm message informed by SMS or Email

● Remote debugging and fault diagnosis

● One key to contact customer service

● Check the help manual online

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
