| Brand Name: | TICO |
| Model Number: | STC-AQF-20 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 8~15 working days |
| Payment Terms: | T/T |

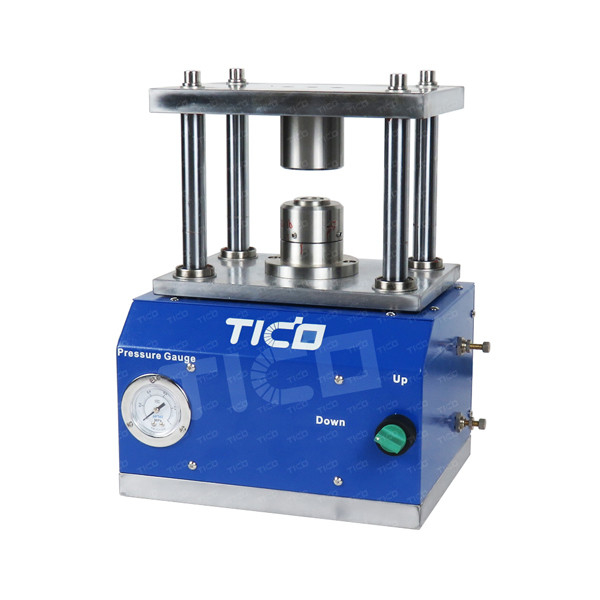

Manual Coin Cell Crimper CR20xx Compact Gas Driven Crimping Machine
Brief Introduction
The STC-AQF-20 is a compact gas driven crimping machine for all types of coin cell cases crimping, such as CR2032, CR2450, etc. CR20XX series crimping die is included as standard, the other crimping die set is optional. The crimping die is made of stainless steel which is more corrosion resistance and longer lifetime.
Features
● Crimping die is made of stainless steel which is more corrosion resistance and longer lifetime.
● The lower die adopts high precision positioning ring to limit the position and control the crimping height to avoid the damage of battery and crimping die if the crimping pressure is excessive.
● If battery get stuck and cannot be taken out, the cell can be pushed out easily by ratoting the top screw.
● Compressed air or inert gas can be used .External connection of compressed gas exhaust can prevent damage to glove box atmosphere.
● Precision die design ensures precise and reliable seal forming, solid steel structure design, stable and safe use.
● Pure pneumatic operation, no electricity, easy to use.
● Perfect to be used inside of glovebox, no leakage.
● Small volume, which can be put into glovebox through big antechamber.
● With the function of short circuit prevention for crimping.
● Fast speed of crimping.
Technical Parameter
| Model | STC-AQF-20 |
| Standard die | CR20XX crimping die, other crimping die is optional. Disassembling die is optional as disassembling machine |
| Driven mode | Gas driven |
| Air source | Argon, nitrogen, or compressed air. It is not recommended to use compressed air when crimper used inside of glovebox |
| Exhause design | Exhaust port is specially designed, which can be connected with KF40 |
| Air consumption | approximately 480ml each crimping |
| Crimping pressure | Manual value control, maximum 1Mpa, 0.7MPa is recommend, accuracy within ±0.5% |
| Crimping stroke | 30mm |
| Main structure material | High strengthen chrome steel with environmental protection plating and painting treatment |
| Dimension | L220 * W220 * H420mm |
| Weight | 28kg |
Warranty
1 year's warranty with lifetime technical support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China,
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A : Yes, we can dispatch professional engineer for on-site installation service.
|
|
